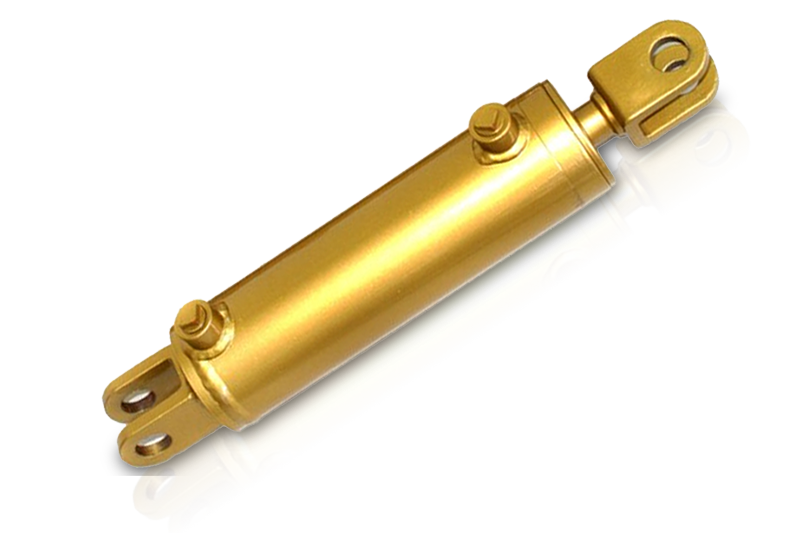

Welded Hydraulic Cylinder
600 Series Welded Hydraulic Cylinder
Model: 600 Series
2" to 5" Bore Size, 3000PSI
Colors
Our welded cylinders can be coated with black, grey and red paint.
Design and Mounting
There is designed with a pair of eye holes at each end of the welded hydraulic cylinder, so pins eye mounting type is suitable. 600 series welded body cylinder is designed for 3000 PSI double acting hydraulic service.
Materials for Making 500 Series Welded Hydraulic Cylinders
- All our welded hydraulic cylinders are characterized by reliable performance due to our adoption of superior quality raw materials.
- Both the cylinder head and the piston of our welded cylinders are made of high grade ductile iron.
- The cylinder barrel is a cold drawn tube which is honed internally.
- The piston rod of our welded hydraulic cylinder is made of chromed C45 steel.
- The cylinder end cap is made of C1045 steel.
- The cylinder head seal is a polyurethane U-cup, and the piston seal is made from urethane.
- The rod wiper of our hydraulic welded cylinder is made of PU.
Dimensional Data of 600 Series Welded Hydraulic Cylinder (Unit: inch)
| See the Drawing | |||||||||||||
| Part No. | Bore | Rod | Retracted | Stroke | Wall | D | LP | LW | LN | EP | HP | Port | Weight(LBS) |
| 62004 | 2" | 1-1/4" | 14.25" | 4" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 12.79 |
| 62006 | 2" | 1-1/4" | 16.25" | 6" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 14.56 |
| 62008 | 2" | 1-1/4" | 18.25" | 8" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 16.32 |
| 62010 | 2" | 1-1/4" | 20.25" | 10" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 17.86 |
| 62012 | 2" | 1-1/4" | 22.25" | 12" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 19.4 |
| 62014 | 2" | 1-1/4" | 24.25" | 14" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 21.17 |
| 62016 | 2" | 1-1/4" | 26.25" | 16" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 22.93 |
| 62018 | 2" | 1-1/4" | 28.25" | 18" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 24.48 |
| 62020 | 2" | 1-1/4" | 30.25" | 20" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 26.24 |
| 62024 | 2" | 1-1/4" | 34.25" | 24" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 29.55 |
| 62028 | 2" | 1-1/4" | 38.25" | 28" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 32.85 |
| 62030 | 2" | 1-1/4" | 40.25" | 30" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 34.62 |
| 62032 | 2" | 1-1/4" | 42.25" | 32" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 36.16 |
| 62034 | 2" | 1-1/4" | 44.25" | 34" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 37.93 |
| 62036 | 2" | 1-1/4" | 46.25" | 36" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 3/8NPT | 36.69 |
| 62504 | 2.5" | 1-1/2" | 14.25" | 4" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 16.98 |
| 62506 | 2.5" | 1-1/2" | 16.25" | 6" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 19.18 |
| 62508 | 2.5" | 1-1/2" | 18.25" | 8" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 21.39 |
| 62510 | 2.5" | 1-1/2" | 20.25" | 10" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 23.37 |
| 62512 | 2.5" | 1-1/2" | 22.25 | 12" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 25.58 |
| See the Drawing | |||||||||||||
| Part No. | Bore | Rod | Retracted | Stroke | Wall | D | LP | LW | LN | EP | HP | Port | Weight(LBS) |
| 62514 | 2.5" | 1-1/2" | 24.25" | 14" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 27.78 |
| 62516 | 2.5" | 1-1/2" | 26.25" | 16" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 29.77 |
| 62518 | 2.5" | 1-1/2" | 28.25" | 18" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 31.97 |
| 62520 | 2.5" | 1-1/2" | 30.25" | 20" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 34.18 |
| 62524 | 2.5" | 1-1/2" | 34.25" | 24" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 38.37 |
| 62528 | 2.5" | 1-1/2" | 38.25" | 28" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 42.56 |
| 62530 | 2.5" | 1-1/2" | 40.25" | 30" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 44.76 |
| 62532 | 2.5" | 1-1/2" | 42.25" | 32" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 46.97 |
| 62534 | 2.5" | 1-1/2" | 44.25" | 34" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 48.95 |
| 62536 | 2.5" | 1-1/2" | 46.25" | 36" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 51.16 |
| 63004 | 3" | 1-1/2" | 14.25" | 4" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/3NPT | 21.83 |
| 63006 | 3" | 1-1/2" | 16.25" | 6" | 0.2" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 24.26 |
| 63008 | 3" | 1-1/2" | 18.25" | 8" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 26.9 |
| 63010 | 3" | 1-1/2" | 20.25" | 10" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 29.11 |
| 63012 | 3" | 1-1/2" | 22.25" | 12" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 31.53 |
| 63014 | 3" | 1-1/2" | 24.25" | 14" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 33.96 |
| 63016 | 3" | 1-1/2" | 26.25" | 16" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 36.6 |
| 63018 | 3" | 1-1/2" | 28.25" | 18" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 39.03 |
| 63020 | 3" | 1-1/2" | 30.25" | 20" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 41.45 |
| 63024 | 3" | 1-1/2" | 34.25" | 24" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 46.31 |
| 63028 | 3" | 1-1/2" | 38.25" | 28" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 51.16 |
| 63030 | 3" | 1-1/2" | 40.25" | 30" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 53.58 |
| 63032 | 3" | 1-1/2" | 42.25" | 32" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 56.23 |
| 63034 | 3" | 1-1/2" | 44.25" | 34" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 58.65 |
| 63036 | 3" | 1-1/2" | 46.25" | 36" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 61.08 |
| 63504 | 3.5" | 1-3/4" | 14.25" | 4" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 26.24 |
| 63506 | 3.5" | 1-3/4" | 16.25" | 6" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 29.33 |
| 63508 | 3.5" | 1-3/4" | 18.25" | 8" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 32.41 |
| 63510 | 3.5" | 1-3/4" | 20.25" | 10" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 35.5 |
| 63512 | 3.5" | 1-3/4" | 22.25" | 12" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 38.59 |
| 63514 | 3.5" | 1-3/4" | 24.25" | 14" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 41.67 |
| 63516 | 3.5" | 1-3/4" | 26.25" | 16" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 44.76 |
| 63518 | 3.5" | 1-3/4" | 28.25" | 18" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 48.07 |
| 63520 | 3.5" | 1-3/4" | 30.25" | 20" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 51.16 |
| 63524 | 3.5" | 1-3/4" | 34.25" | 24" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 57.33 |
| 63528 | 3.5" | 1-3/4" | 38.25" | 28" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 63.5 |
| 63530 | 3.5" | 1-3/4" | 40.25" | 30" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 66.59 |
| 63532 | 3.5" | 1-3/4" | 42.25" | 32" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1" | 1.89" | 1/2NPT | 69.9 |
| See the Drawing | |||||||||||||
| Part No. | Bore | Rod | Retracted | Stroke | Wall | D | LP | LW | LN | EP | HP | Port | Weight(LBS) |
| 63534 | 3.5" | 1-3/4" | 44.25" | 34" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1.125" | 1.89" | 1/2NPT | 72.99 |
| 63536 | 3.5" | 1-3/4" | 46.25" | 36" | 0.25" | 1" | 2.125" | 1.125" | 2.07" | 1.125" | 1.89" | 1/2NPT | 76.07 |
| 64004 | 4" | 1-3/4" | 14.25" | 4" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 30.65 |
| 64006 | 4" | 1-3/4" | 16.25" | 6" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 34.4 |
| 64008 | 4" | 2" | 18.25" | 8" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 39.25 |
| 64010 | 4" | 2" | 20.25" | 10" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 42.12 |
| 64012 | 4" | 2" | 22.25" | 12" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 46.08 |
| 64014 | 4" | 2" | 24.25" | 14" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 50.05 |
| 64016 | 4" | 2" | 26.25" | 16" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 53.8 |
| 64018 | 4" | 2" | 28.25" | 18" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 57.77 |
| 64020 | 4" | 2" | 30.25" | 20" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 61.52 |
| 64024 | 4" | 2" | 34.25" | 24" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 69.46 |
| 64028 | 4" | 2" | 38.25" | 28" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 77.18 |
| 64030 | 4" | 2" | 40.25" | 30" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 81.14 |
| 64032 | 4" | 2" | 42.5" | 32" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 84.89 |
| 64034 | 4" | 2" | 44.25" | 34" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 88.86 |
| 64036 | 4" | 2" | 46.25" | 36" | 0.25" | 1.25" | 2" | 1.125" | 2.125" | 1.125" | 1.89" | 1/2NPT | 92.61 |
| 65004 | 5" | 2-1/2" | 16.25" | 4" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 63.95 |
| 65006 | 5" | 2-1/2" | 18.25" | 6" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 68.36 |
| 65008 | 5" | 2-1/2" | 20.25" | 8" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 72.77 |
| 65010 | 5" | 2-1/2" | 22.25" | 10" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 77.18 |
| 65012 | 5" | 2-1/2" | 24.25" | 12" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 81.59 |
| 65014 | 5" | 2-1/2" | 26.25" | 14" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 86 |
| 65016 | 5" | 2-1/2" | 28.25" | 16" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 90.41 |
| 65018 | 5" | 2-1/2" | 30.25" | 18" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 94.82 |
| 65020 | 5" | 2-1/2" | 32.25" | 20" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 99.23 |
| 65024 | 5" | 2-1/2" | 36.25" | 24" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 108.05 |
| 65028 | 5" | 2-1/2" | 40.25" | 28" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 116.87 |
| 65030 | 5" | 2-1/2" | 42.25" | 30" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 121.28 |
| 65032 | 5" | 2-1/2" | 44.25" | 32" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 125.69 |
| 65034 | 5" | 2-1/2" | 46.25" | 34" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 130.1 |
| 64036 | 5" | 2-1/2" | 48.25" | 36" | 0.25" | 1.375" | 2" | 1.5" | 2.5" | 1.5" | 2.5" | 1/2NPT | 134.51 |
Wantong Hydraulic Power Machinery Company is an experienced welded hydraulic cylinder manufacturer in China. Our company has begun hydraulic equipment production business since 1986. Over 20 years production experience enables us to produce a wide range of hydraulic cylinders, including welded hydraulic cylinders, tie rod hydraulic cylinders, ram hydraulic cylinders and telescopic hydraulic cylinders. Meanwhile, we also win lots of customers in America, Canada, Holland, Finland, and Germany, etc.
