Automotive Lift Hydraulic Power Unit

Automotive Lift Hydraulic Power Unit

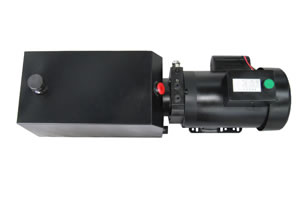

This is a small AC hydraulic power unit designed for car lifts.
Our automotive lift hydraulic power unit is an integrated and assembled hydraulic system. It adopts AC power as power supply and is designed with a two-position two-way solenoid check valve. An inbuilt throttling valve is available at the oil return port, which keeps the hydraulic device declining steadily and at a constant speed. This design also provides our hydraulic power units with simple operation and convenient maintenance.

Technical Parameters of Automotive Lift Hydraulic Power Unit

Rated Pressure (MPa) 21
Rated displacement (ml/r) 1.0, 1.6, 2.0, 3.2
Operating voltage (V) 220V, 380V
Motor power (KW) 1.5,2.2,3
Load speed (rpm) 1450, 2800L
Operation condition (%) S1=10
Oil tank capacity (L) 4L, 6L, 8L, 12L
Mounting type Vertical, horizontal
Outlet size SAE6#, SAE8#

Usage Instructions on Automotive Lift Hydraulic Power Units
1. The contamination degree of hydraulic oil shouldn't exceed ISO 4406 18/14, and the oil viscosity should be 22-46mm2/s in accordance with ISO3448 viscosity classification.
2. To achieve thermal equilibrium of the electric motor, we have to assure that the ratio between interval time and operation time is 2:8. For instance, there should be an interval of 8 minutes after each 2-minute operation of the hydraulic power unit.
3. The working voltage of the two-position two-way solenoid check valve can be 12V, 24V or 220V.

Wantong Hydraulic Power Machinery Company is an automotive lift hydraulic power unit manufacturer with over 20 years experience. We can provide different types of hydraulic power packs for different uses, such as hydraulic power packs for heavy equipment like dump trucks and garbage trucks as well as forklifts, etc., and hydraulic power units for small sized equipment like vehicle jacks, small elevators and so on. In addition to power units, we can also manufacture hydraulic cylinders. All our hydraulic products are made in conformation with ISO9001:2000 international quality management system. Now, they are widely used in America, Estonia, Germany, Finland and Holland, to name a few.
We welcome you to buy our products.
