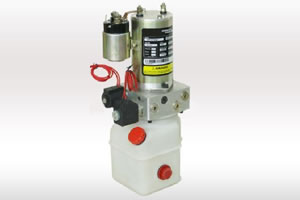

Small Elevator Hydraulic Power Unit

Small Elevator Hydraulic Power Unit

This hydraulic power unit is especially designed for small elevator, small oil press and small truck applications.
Our small elevator hydraulic power unit is designed with a two-position two-way solenoid check valve for unloading and positioning control. It employs plug-in type control valve and features good pressure maintaining performance, simple operation and convenient maintenance, etc.
This small elevator hydraulic power pack lends itself to both vertical and horizontal mounting types.

Specifications of Small Elevator Hydraulic Power Unit

Operation voltage Motor Power Oil Pressure (MPa) Oil Pump Displacement (ml/r) Load Speed (rpm) Oil Tank Capacity (L)
24 V 0.5, 0.8 KW 18-20 0.35, 0.45, 0.60 3500 1.2, 1.5, 1.8
12 V

Usage Instructions on Small Elevator Hydraulic Power Unit
1. The contamination degree of hydraulic oil shouldn't exceed ISO 4406 18/14. The hydraulic oil should be filtered by a 10-30μm filter before put into use. The oil viscosity should be 22-46mm2/s in accordance with ISO3448 viscosity classification.
2. To achieve thermal equilibrium of the electric motor, we have to assure that the ratio between interval time and operation time of the hydraulic power unit is 1:9.
3. This small elevator hydraulic power unit is in line with Q/320203ABP01-2004 standard.

We welcome you to click the website constructed by Wantong Hydraulic Power Machinery Company, a small elevator hydraulic power unit manufacturer and supplier based in China. We produce not only hydraulic power packs, but also hydraulic cylinders of welded type, tie rod type and piston type. These hydraulic products are extensively used in heavy duty vehicles, mechanical equipment and vehicle service tools.
If you have any hydraulic equipment need, please don't hesitate to contact us by phone or email listed on the website. We are ready to serve you.
