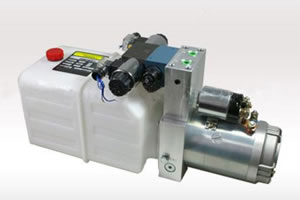

Dump Truck Hydraulic Power Unit

Dump Truck Hydraulic Power Unit

This is a hydraulic power unit especially designed for dump truck modifications.
In order to prevent materials from leaking or spilling, a dump truck is usually mounted with a special system. To put it simply, it is to put a cover on the rear cargo-box of dump trucks, thus achieving a fully enclosed cargo-box. Dump truck hydraulic power units function to provide power for this special system. Meanwhile, dump truck hydraulic power pack is also applicable for van trucks and some other heavy duty vehicles.
The assistance of hydraulic power units enables modified dump trucks to carry more types of materials, including garbage, mud, dirt, ore and various bulk materials which may cause pollution.

This power unit is applicable for a wide array of vehicles, such as heavy trucks under the brandname of Steyr, Hongyan, Jiefang, Dongfeng, Auman, Camas, Cummins and more.

Technical Parameters of Dump Truck Hydraulic Power Unit

Rated Pressure (MPa) 21
Rated displacement (ml/r) 1.0, 1.6, 2.0,
Operating voltage (V) 24
Motor power (KW) 1.6,2.0,2.5
Load speed (rpm) 2500
Operation condition (%) S1=10
Oil tank capacity (L) 4L, 6L, 8L
Mounting type Vertical, horizontal
Outlet size SAE6#, SAE8#

Usage Instructions
1. This hydraulic power unit is not designed for long time continuous operation. To achieve thermal equilibrium of the electric motor, we have to assure that the interval time should be 9 times of the operation time of the power pack. For instance, there should be an interval of 9 minutes after each one-minute operation.
2. The contamination degree of hydraulic oil shouldn't exceed ISO 4406 18/14. Oil products should be filtered by a 10-30μm filter before put into use. The oil viscosity should be 22-46mm2/s in accordance with ISO3448 viscosity classification.
3. Have an oil change after the first 100 working hours of the hydraulic power unit, and then every 1,000 working hours.

As a China-based dump truck hydraulic power unit manufacturer, we can also provide many other hydraulic products, like hydraulic cylinders of welded body type, tie rod type and piston type, and AC and DC hydraulic power packs for automotive lifts, elevators, forklifts, garbage trucks, and snow plow, etc.
In addition to high quality hydraulic products, we also provide superior quality service. We offer one year quality warranty to all products. If you are looking for hydraulic power machinery, please don't hesitate to contact us. Wantong Hydraulic Power Machinery Company is surely your best choice.
