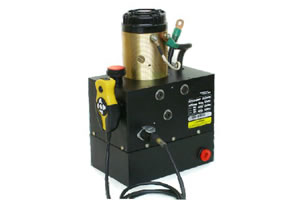

Snow Plow Hydraulic Power Unit

Snow Plow Hydraulic Power Unit

A snow plow hydraulic power unit, as its name suggests, is designed for snow sweepers. Of course, it is also applicable for various other similar vehicles.
Our snowplow hydraulic power pack is manufactured with one or more three-position four-way solenoid check valves to control cylinder operation. Different operation voltages are possible, including 12V, 24V and 48V.
An inbuilt throttling valve is available at the oil return port, which keeps the hydraulic device descending steadily and at a constant speed. This design also provides our hydraulic power unit with good pressure maintaining performance, simple operation and convenient maintenance.

Specifications of Snow Plow Hydraulic Power Unit

1 Rated Pressure (MPa) 20
2 Rated displacement (ml/r) 1.6, 2.0, 2.5, 3.3
3 Operating voltage (V) 12, 24, 48
4 Motor power (KW) 1.6, 2, 2.5
5 Load speed (rpm) 2500
6 Operation condition (%) S1=10
7 Oil tank capacity (L) 1.5-12
8 Mounting type Vertical, horizontal
9 Outlet size SAE6#, SAE8#

Usage Instructions
1. The contamination degree of hydraulic oil shouldn't exceed ISO 4406 18/14. The hydraulic oil should be filtered by a 10-30μm filter before put into use. The oil viscosity should be 22-46mm2/s in accordance with ISO3448 viscosity classification.
2. To achieve thermal equilibrium of the electric motor, we have to assure that the ratio between interval time and operation time of the snow plow hydraulic power unit is 1:9.
3. This hydraulic power unit is in line with Q/320203ABP01-2004 standard.

Wantong Hydraulic Power Machinery Company is an experienced snowplow hydraulic power unit manufacturer and exporter in China. We produce different types of hydraulic power units and hydraulic cylinders. All our products are made in strict conformation with ISO9001 quality management system standard. So customers can feel totally safe in purchasing and using our hydraulic products.
With advanced production facilities, experienced designers and technicians, as well as leading technologies, our products are reliable in performance, low priced and environmentally friendly. We welcome international customers to choose our products.
